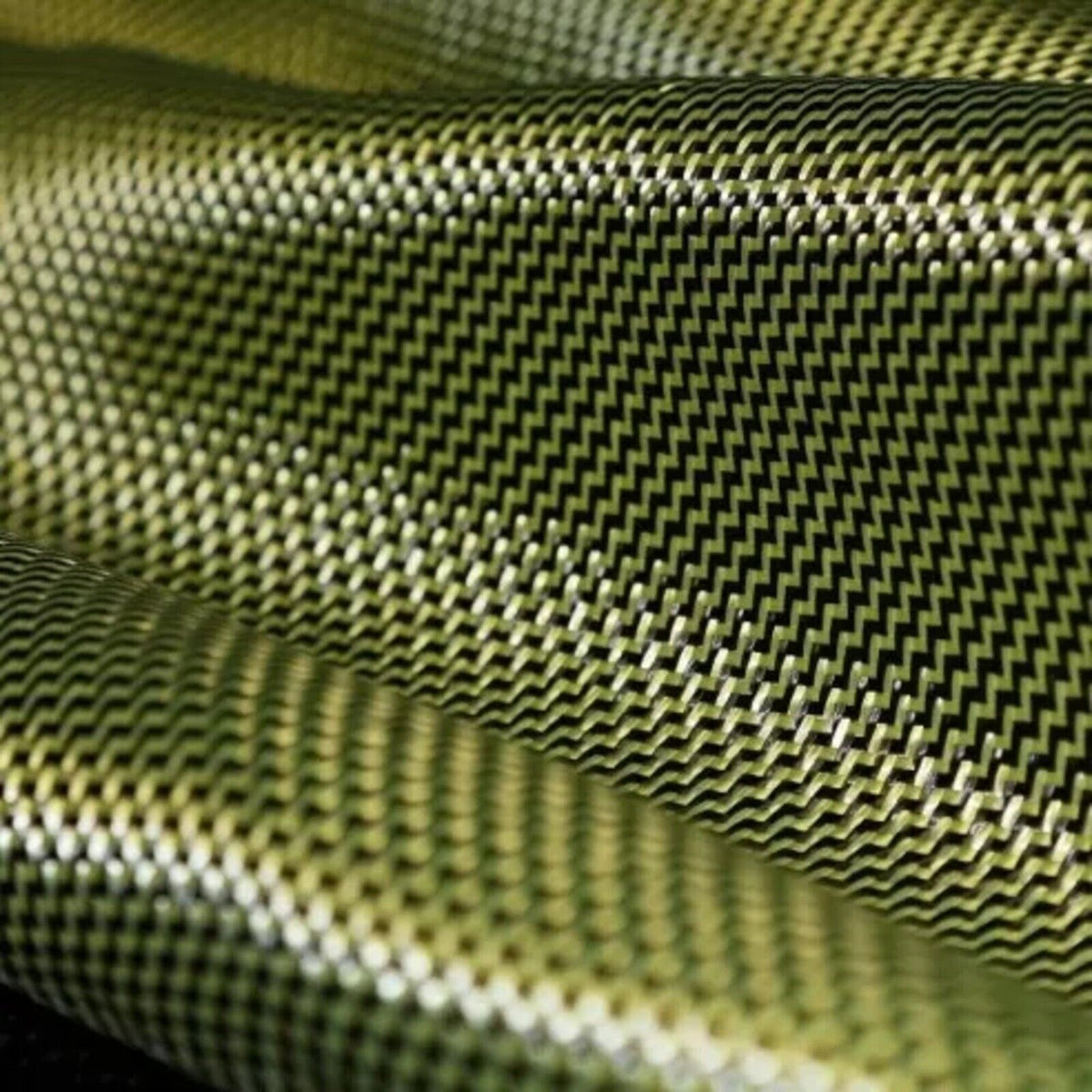

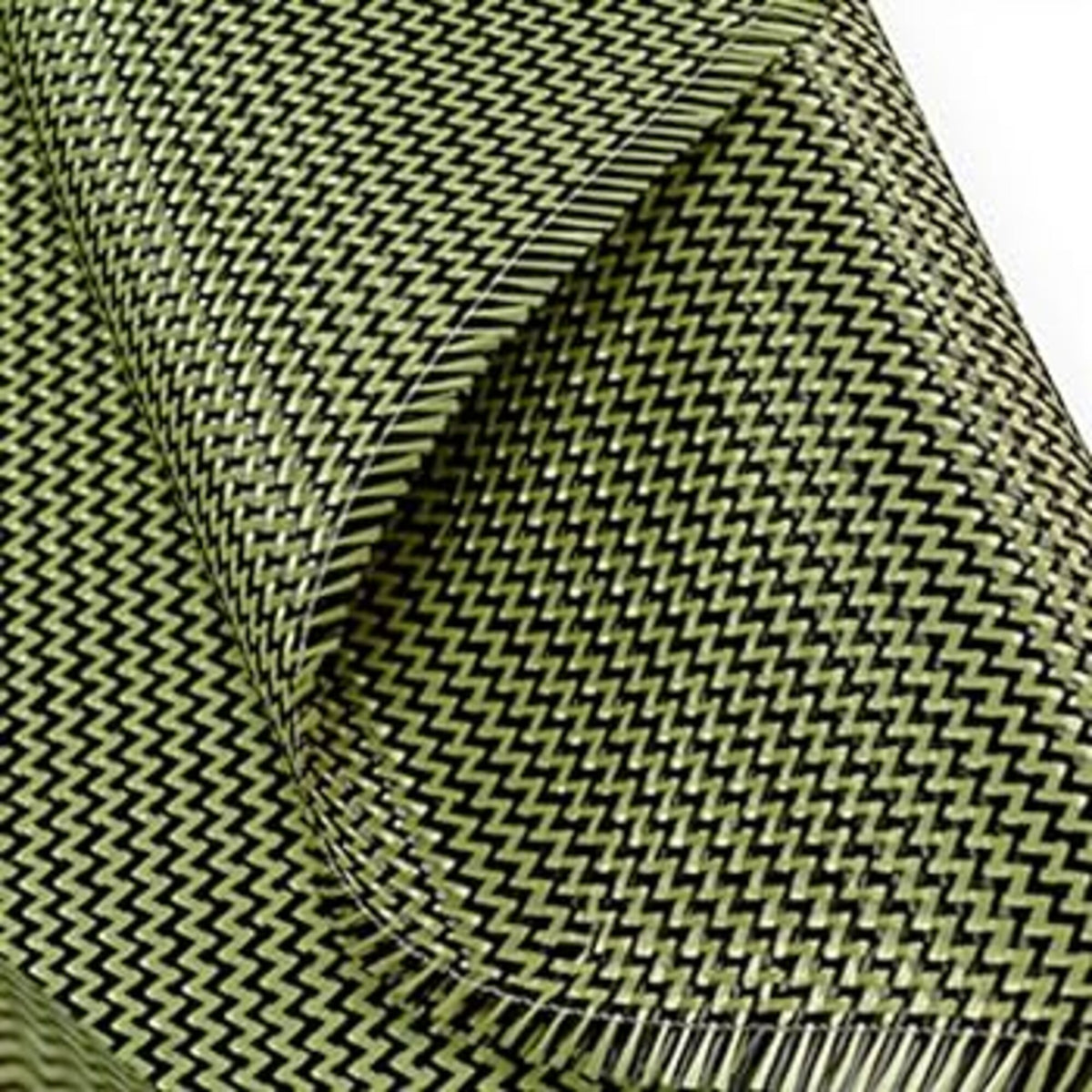

Carbon Fibre Kevlar W-Weave 3/1 3k 200gsm 1000mm Width
Couldn't load pickup availability
https://www.ebay.co.uk/itm/314715573867
200g 3/1 Twill 3k Carbon Fibre Kevlar Cloth 1000mm Width -Comes on a roll
This carbon/aramid hybrid reinforcement is used for strength, stiffness, impact protection to laminates in applications such as kayaks and motorsport interior, outer panels and more.
SPECIFICATION
Weight and Dimensions
| Areal Weight | 200 | g/m² |
|---|---|---|
| Width | 1000 | mm |
| Thickness | 0.3 | mm |
| Consolidated Thickness | 0.3 | mm |
Fabric Specification
| Fibre Orientation | 0, 90 | |
|---|---|---|
| Colour | Black/Yellow | |
| Format | Woven Fabric | |
| Filament Count | 3k | |
| Fibre Type | Carbon Fibre Hybrid | |
| Ends | 6.5 | /cm |
| Picks | 6.5 | cm |
| Brand | Dupont | |
| Fibre Specifics | Pyrofil TR30S 3k, Kevlar 49 | |
| Weave | 3 x 1 Twill |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
Fibre Properties
| UV Resistance | Poor |
|---|
General Properties
| Gross Weight | 0.200 | kg |
|---|
This carbon kevlar twill fabric combines two unique reinforcement yarns. Carbon provides high levels of stiffness and strength, whereas aramid provides huge impact/abrasion/fracture resistance. The aramid used in this cloth is genuine DuPont Kevlar®. This distinct looking hybrid cloth is used in many high-performance, high-impact applications such as canoes, military ballistics and rally-car panelling.
When using only carbon/Kevlar® reinforcement in a part you should expect to use several layers of this fabric in each part. None-structural components like body panels and covers will typically require 3-6 layers of a carbon fibre cloth of this weight.
DuPont™ and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
Please purchase the number of linear metres you require. When purchasing multiple metres the fabric will be supplied in one continuous length on a roll.
