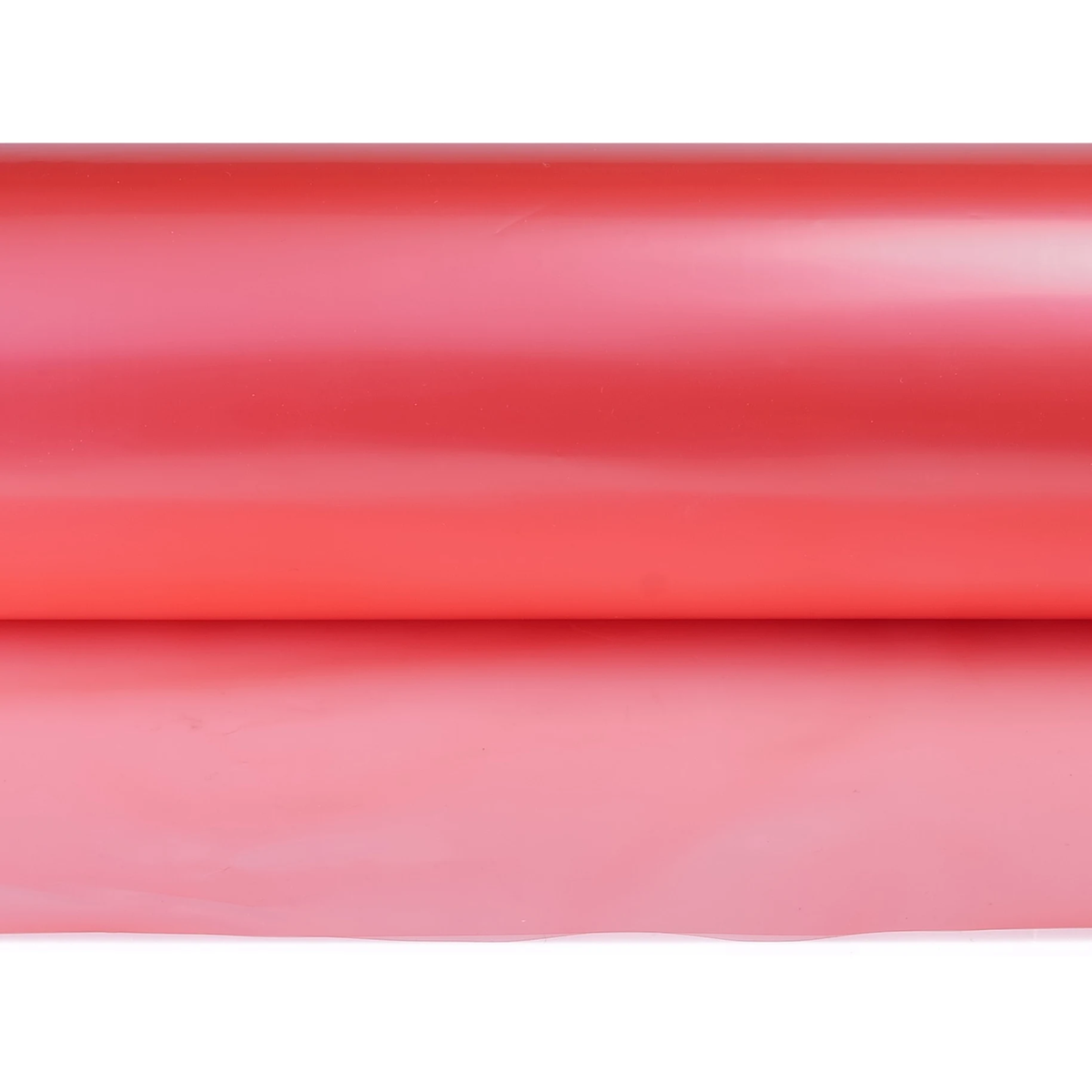

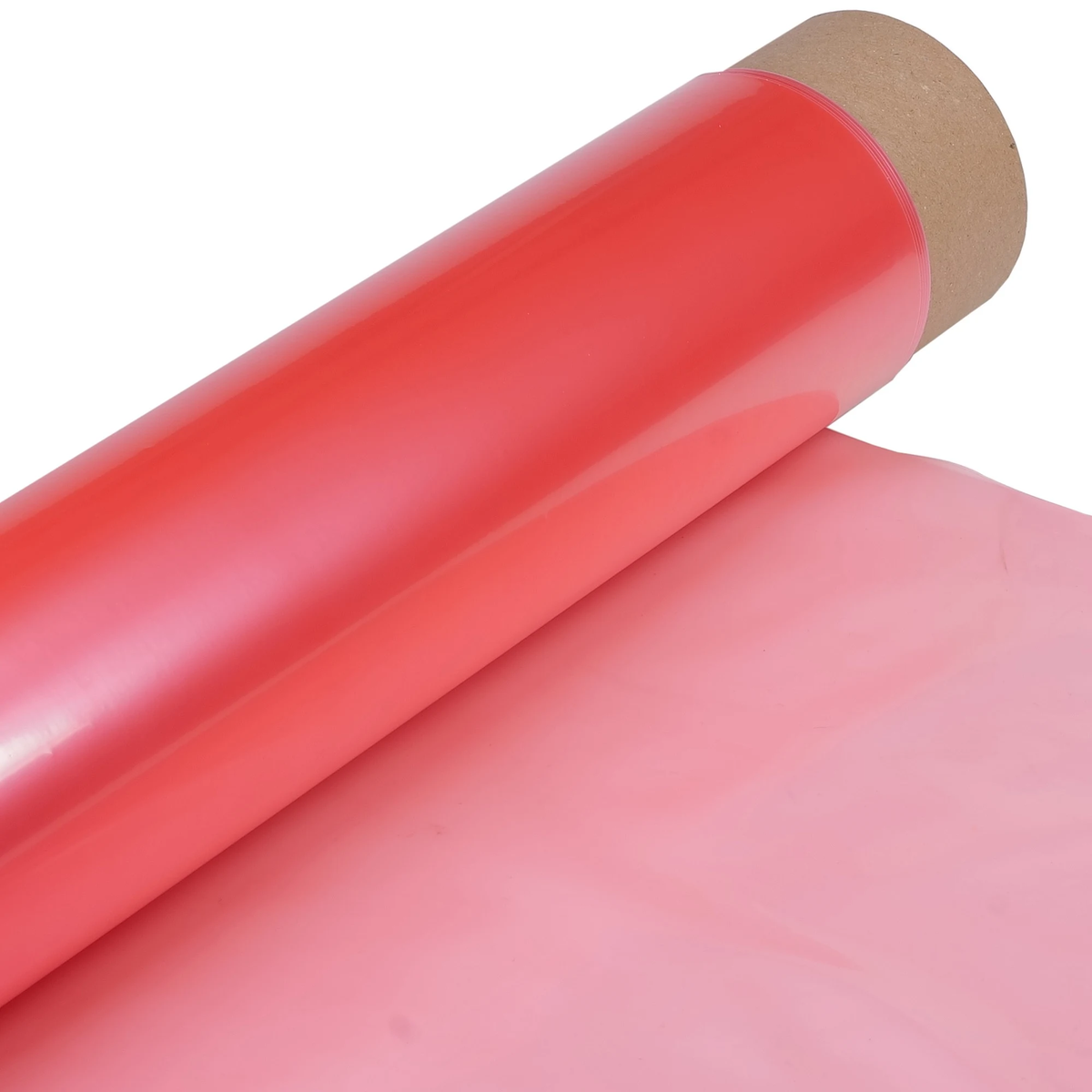

Vacuum Bagging High Temp 1520mm Width
£9.99
Incl. VAT. Shipping calculated at checkout.
In stock, ready to dispatch
- Same-day UK dispatch
- Worldwide shipping
- WhatsApp & email support
Dispatch & delivery
UK orders placed on working days are dispatched the same day from our UK warehouse. We ship worldwide, and delivery options and costs are shown at checkout. Larger sheets and cores are packed flat and protected for transit.
Returns
Unused items in their original condition can be returned. Contact us first and we'll guide you through it. Items that have been cut to size or used can't be returned.
Need technical advice?
Not sure which size, thickness or material is right for your build? Message our team on WhatsApp or email and we'll help you spec it, whether it's a one-off RC part or a production run.
Datasheet
Specification & details
Dimensions, material data and mechanical properties for Vacuum Bagging High Temp 1520mm Width.
- Brand
- Hyperdrivecarbon
- Category
- Business, Office & Industrial:Hydraulics, Pneumatics, Pumps & Plumbing:Pumps & Pump Accessories:Vacuum Pumps:Other Vacuum Pumps
- Length options
- 1 metre, 2 metre, 3 metre, 5 metre, 10 metre, 25 metre, 50 metre, 100 metre
Vacuum bagging is a pivotal technique in composite manufacturing, especially in fabricating laminated structures. This process involves using vacuum bags to apply pressure on composite materials during curing. By removing the air from the vacuum bag, a significant pressure differential is created, ensuring efficient consolidation of the composite laminate and the expulsion of excess resin. This method, prevalent in the aerospace industry and other sectors, results in a more uniform and defect-free composite layup, enhancing the overall quality of the final product. The vacuum bag serves as a clamping mechanism, utilizing atmospheric pressure to firmly hold epoxy-coated components in place during the curing process, as seen in the entropyresins.com source.
SPECIFICATION
Weight and Dimensions
| Width | 1520 | mm |
|---|
Product Data
| Colour | Pink | |
|---|---|---|
| Type | Bagging Film | |
| Format | Lay Flat Tube (LFT) | |
| Chemistry / Material | Nylon (PA6) | |
| Film Thickness | 50 | μm |
Mechanical Properties
| Max Service Temp | 160 | °C |
|---|
General Properties
| Gross Weight | 0.901 | kg |
|---|---|---|
| Brand | AeroFilm® |
The basics of vacuum bagging involve laying up a composite by hand, wetting it out, and then placing it under vacuum. This process helps compact the laminate, ensuring proper consolidation of the composite layers. The vacuum bag acts as a membrane, sealed at the edges to the mold surface, creating an environment where air is efficiently evacuated. Whether using bag film or envelope bags, the fundamentals of vacuum bagging are consistent across various applications. The technique plays a crucial role in achieving consistent and high-quality composite layups, making it an essential step in the composite manufacturing process.
