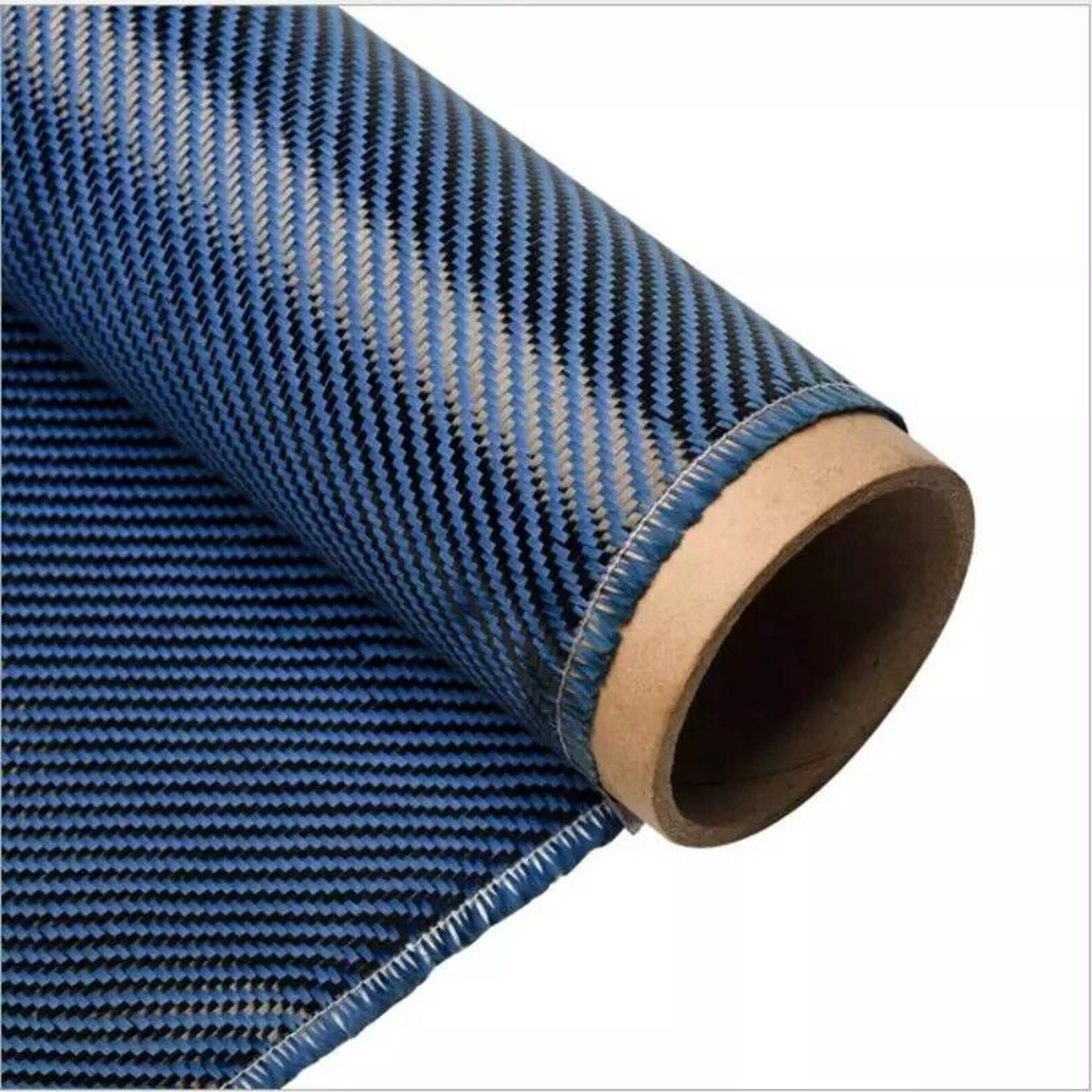

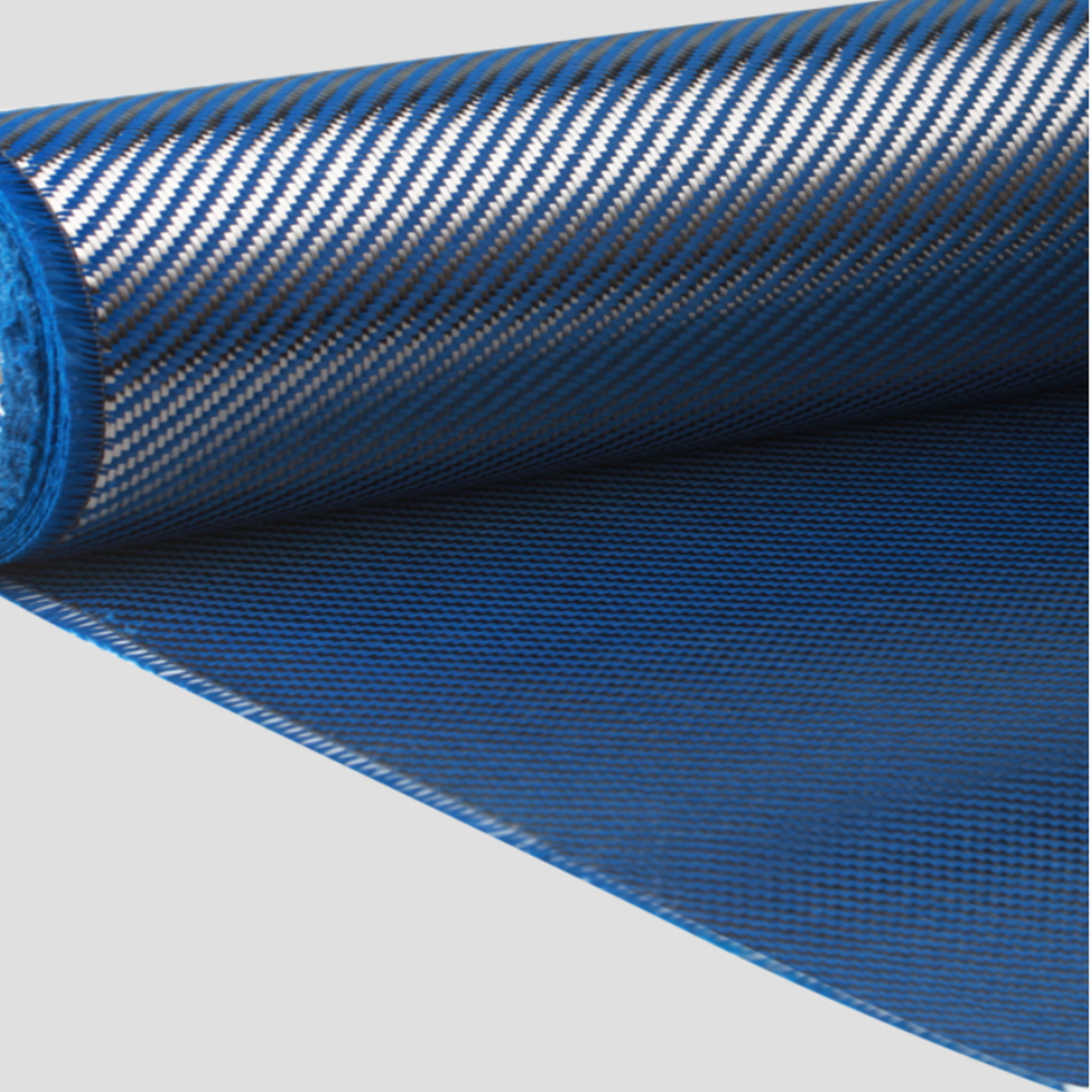

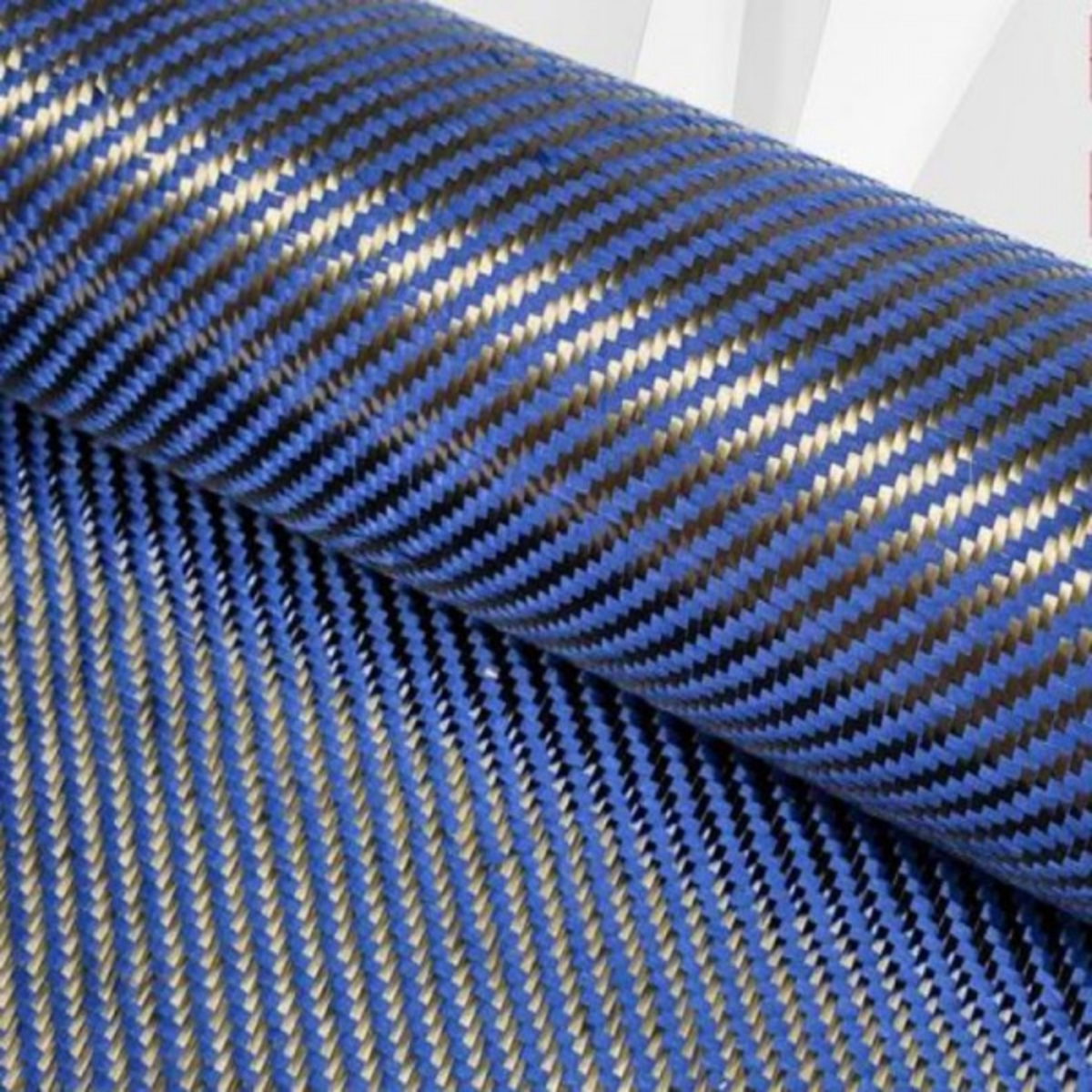

Carbon Fibre Cloth 210g Blue 2/2 Twill 3k 1000mm width

In stock

£36.00 GBP inc. VAT

Length 1 meter 2 meter 3 meter 5 meter 10 meter 25 meter 50 meter 100 meter

Product variants

https://www.ebay.co.uk/itm/314715573867

The 210 g/m² blue and black carbon fiber twill weave cloth mixed with polyester fabric is an innovative composite material that combines the strength and aesthetic appeal of carbon fiber with the flexibility of polyester. This blend offers a unique visual impact, thanks to the interwoven blue and black strands, creating a striking appearance ideal for decorative and functional applications. With a lightweight areal density of 210 g/m², the fabric is perfect for projects that prioritize a balance of aesthetics and performance without adding unnecessary weight.

Specifications -

Specification	Value
Format	Woven Fabric
Consolidated	0.3mm
Type	Carbon Fibre Hybrid
Fibre Orientation	0, 90
Weave	2 x 2 Twill
Filament Count	3k
Colour	Blue

Weight and Dimensions

Thickness	0.3mm
Width	1000mm
Consolidated Thickness	0.3mm
Areal Weight	210g/m2

The twill weave structure enhances the drapeability of the fabric, allowing it to conform seamlessly to complex shapes and contours. This property is particularly advantageous in automotive interiors, custom paneling, and sporting goods where both design and precision are critical. The addition of polyester fibers increases the material’s resilience, improving its resistance to abrasion and enhancing its durability in less demanding structural roles compared to pure carbon fiber. Additionally, the polyester blend makes it more cost-effective, broadening its usability in commercial applications.

This fabric is compatible with a variety of resin systems, including epoxy and polyester resins, enabling it to be used in laminations and composites for various industries. Its lightweight nature and dynamic color combination make it popular in custom-built items like phone cases, furniture accents, and display pieces. By merging the technical performance of carbon fiber with the affordability and flexibility of polyester, the 210 g/m² blue and black twill weave fabric offers a versatile solution for creators and engineers alike.

Here is the technical data for the 210 g/m² twill weave 2K blue and black carbon fiber cloth mixed with polyester fabric:

Physical Properties:

Areal Weight: 210 g/m²
Thickness: ~0.2 mm
Weave Type: Twill (2x2 pattern)
Color: Interwoven blue and black fibers for a striking aesthetic
Fiber Type:
- Carbon Fiber: 2K tow (2,000 filaments per bundle)
- Polyester Blend: Adds flexibility and durability

Mechanical Properties (Carbon Fiber Component):

Tensile Strength: ~4,000 MPa
Tensile Modulus: ~230 GPa
Elongation at Break: ~1.5%

Key Features:

Resin Compatibility: Works with epoxy, polyester, and vinyl ester resins
Drapeability: Excellent, due to the twill weave, suitable for complex geometries
Abrasion Resistance: Enhanced by polyester blend
Aesthetic Appeal: Vibrant blue and black design

Typical Applications:

Automotive interior trims and accents
Decorative panels and surfaces
Lightweight custom components
Consumer products like phone cases and electronic enclosures

This hybrid fabric combines the high-performance characteristics of carbon fiber with the versatility of polyester, making it a practical and visually appealing choice for a variety of applications.
