Crafts:Fabric

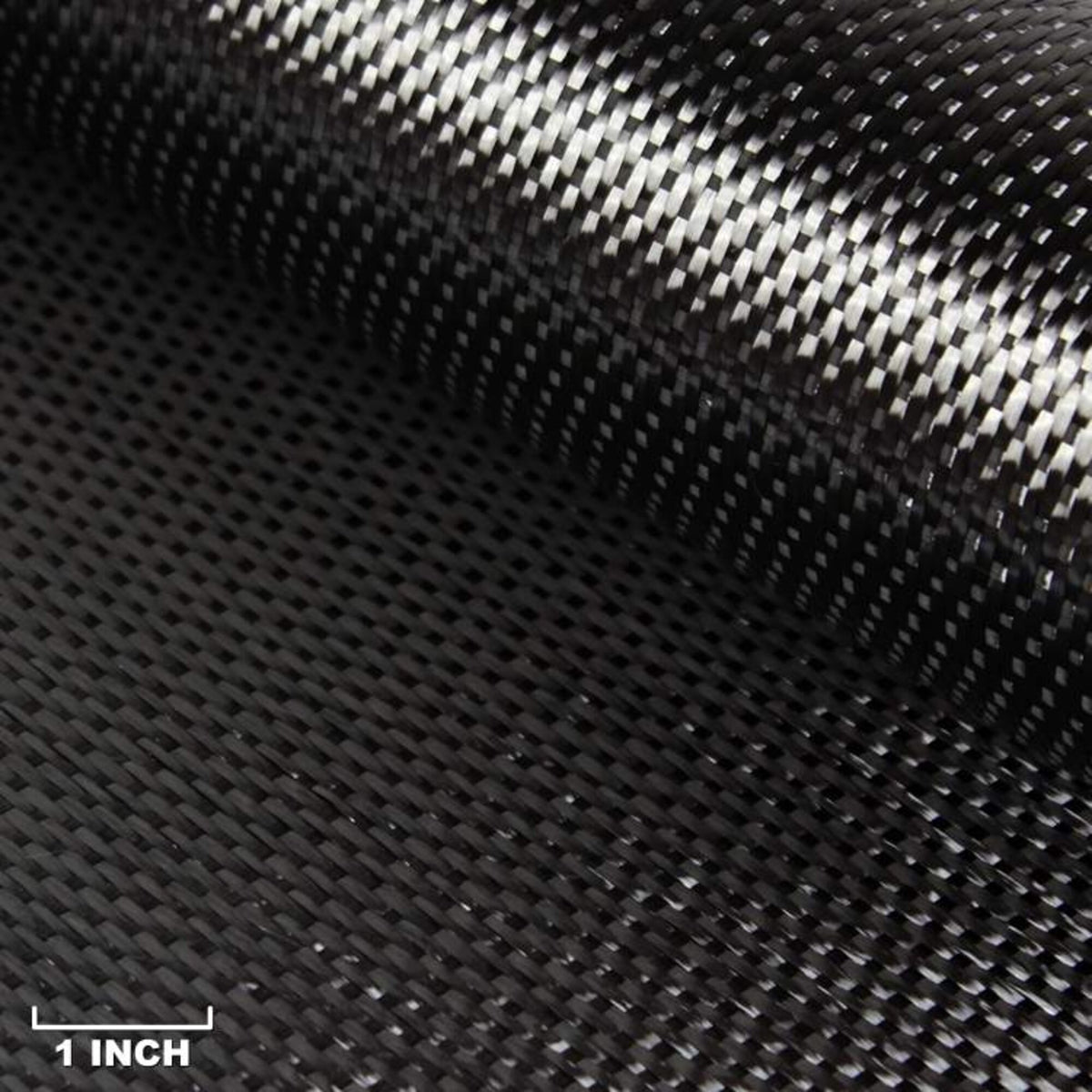

Carbon Fibre Cloth 375g 5HS 6k (1250mm) Width Comes on a roll
£52.00
Incl. VAT. Shipping calculated at checkout.
Low stock: only 10 left
- Same-day UK dispatch
- Worldwide shipping
- WhatsApp & email support
Dispatch & delivery
UK orders placed on working days are dispatched the same day from our UK warehouse. We ship worldwide, and delivery options and costs are shown at checkout. Larger sheets and cores are packed flat and protected for transit.
Returns
Unused items in their original condition can be returned. Contact us first and we'll guide you through it. Items that have been cut to size or used can't be returned.
Need technical advice?
Not sure which size, thickness or material is right for your build? Message our team on WhatsApp or email and we'll help you spec it, whether it's a one-off RC part or a production run.
Datasheet
Specification & details
Dimensions, material data and mechanical properties for Carbon Fibre Cloth 375g 5HS 6k (1250mm) Width Comes on a roll.
- Brand
- Hyperdrivecarbon
- Category
- Crafts:Fabric
- Length options
- 1 meter, 2 metre, 3 metre, 5 metre, 10 metres, 25 metres, 50 metres, 100 metres
SPECIFICATION
Fabric Specification
| Colour | Black | |
|---|---|---|
| Fibre Orientation | 0, 90 | |
| Format | Woven Fabric | |
| Fibre Type | Carbon Fibre | |
| Weave | 5 Harness Satin | |
| Filament Count | 6k | |
| Ends | 4.9 | /cm |
| Picks | 4.9 | cm |
Weight and Dimensions
| Width | 1250 | mm |
|---|---|---|
| Thickness | 0.53 | mm |
| Consolidated Thickness | 0.53 | mm |
| Areal Weight | 375 | g/m² |
Fibre Properties
| UV Resistance | Fully UV Stable | |
|---|---|---|
| Filament Diameter | 7 | µm |
| Elongation at Break | 2.0 | % |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
General Properties
| Gross Weight | 0.468 | kg |
|---|

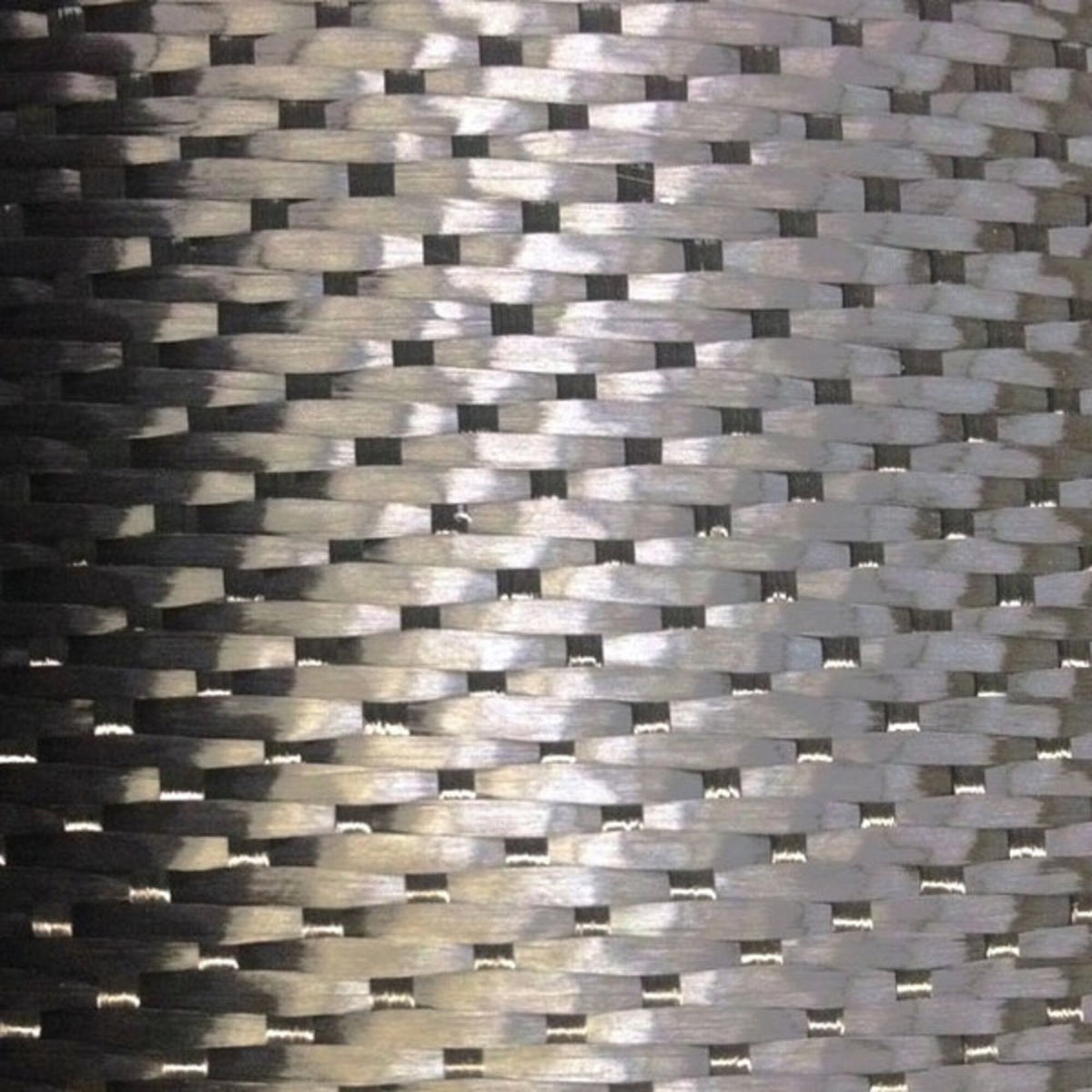

The 375g 5HS 6k Carbon Fibre Cloth represents a specific type of carbon fiber reinforcement renowned for its strength and versatility in composite material applications. The "375g" refers to the fabric weight per square meter, indicating that it is a medium-weight cloth. This weight is often chosen for applications that require a balance between structural strength and flexibility. The "5HS" denotes a 5-harness satin weave pattern, where the carbon fibers cross over five and under one in a repeating pattern. This weave imparts a smooth and visually appealing surface finish while maintaining excellent structural integrity.
The use of a 6k tow size in the 375g 5HS 6k Carbon Fibre Cloth is a significant feature. The "6k" indicates that each individual carbon fiber bundle, known as a tow, consists of approximately 6,000 individual fibers. This creates a fabric with a higher fiber density, enhancing its overall strength and load-bearing capabilities. The combination of the 5HS weave and the 6k tow size makes this carbon fiber cloth well-suited for applications requiring a high strength-to-weight ratio, such as in the manufacturing of lightweight structural components for aerospace, automotive, marine, and sports equipment.
Engineers and manufacturers appreciate the technical specifications of the 375g 5HS 6k Carbon Fibre Cloth for designing and producing high-performance composite materials. These technical details include information on the fabric's width, tensile strength, and modulus of elasticity. The cloth's weight is also crucial for calculating the final weight of the composite material, which is especially important in weight-sensitive applications. Overall, the technical specifications of this carbon fiber cloth provide valuable insights into its capabilities and guide its selection for specific projects requiring reliable and robust composite solutions.
