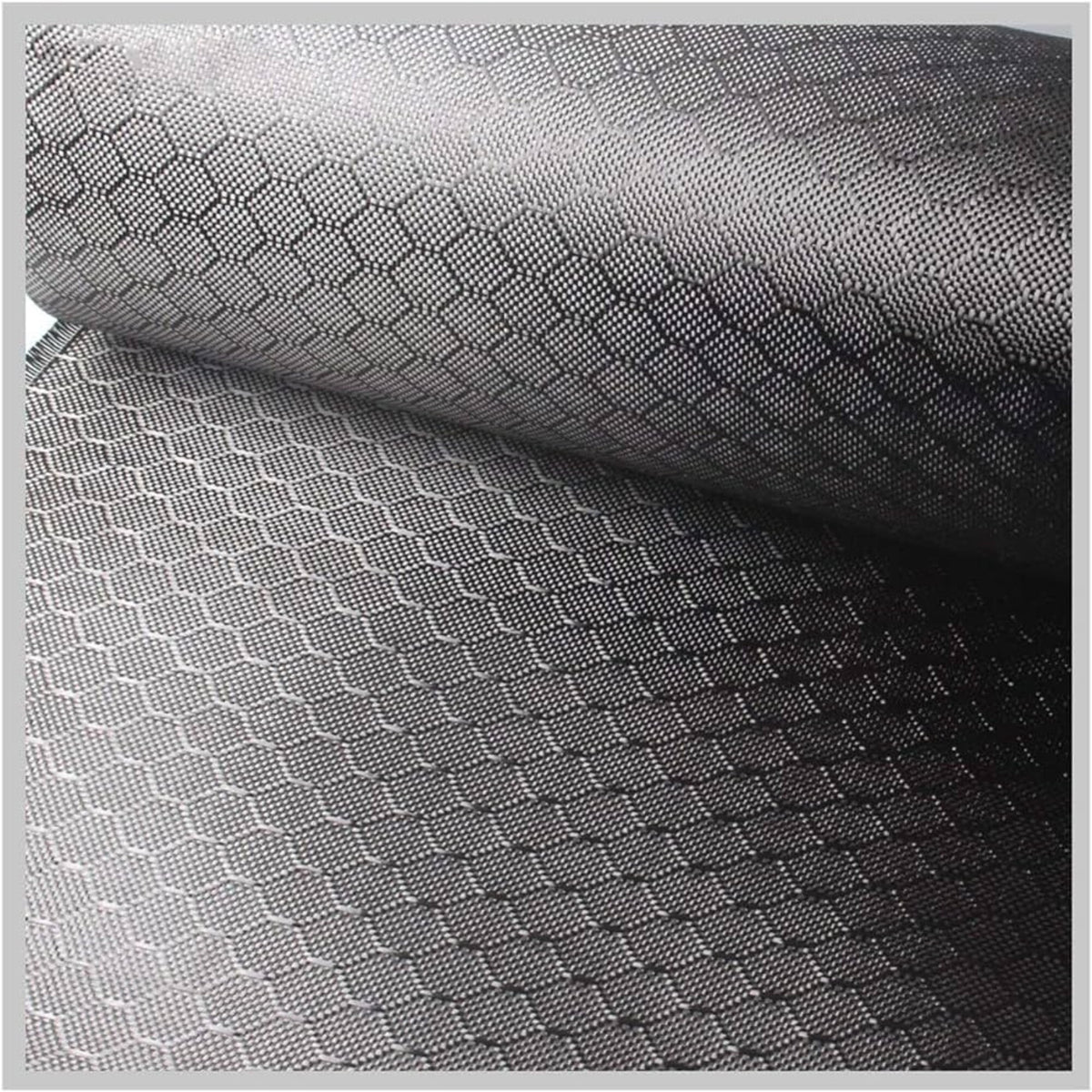

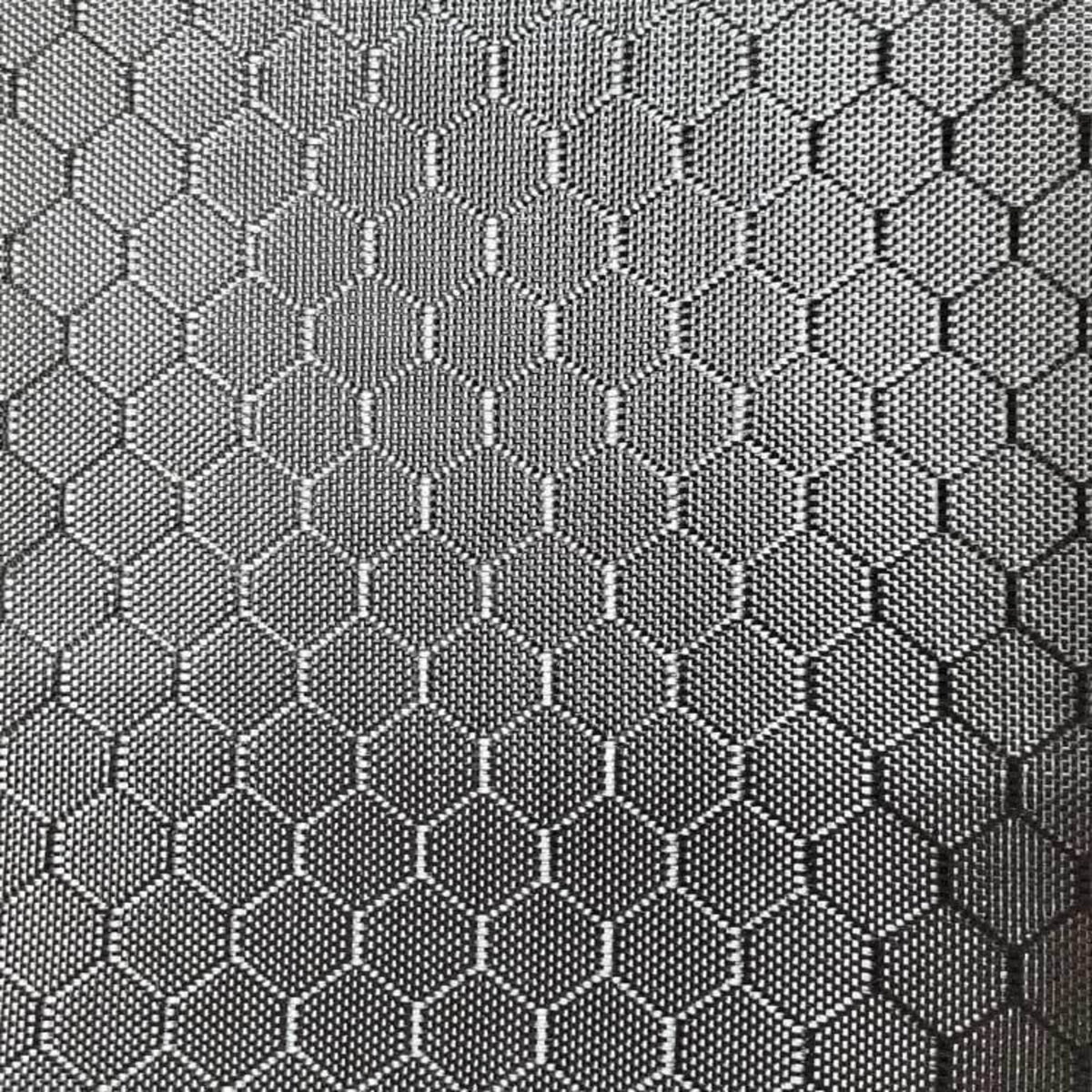

Carbon Fibre Cloth Fabric Honey Comb Weave 240 gsm 1000mm width
Couldn't load pickup availability
https://www.ebay.co.uk/itm/314715573867
240g Carbon Fibre Honey Comb Weave Cloth Fabric 3k
SPECIFICATION
Weight and Dimensions
| Width | 1000 | mm |
|---|---|---|
| Thickness | 0.25 | mm |
| Consolidated Thickness | 0.25 | mm |
| Areal Weight | 240 | g/m² |
Fabric Specification
| Fibre Specifics | T700 3k | |
|---|---|---|
| Colour | Black | |
| Weave | Hoeny Comb | |
| Format | Woven Fabric | |
| Filament Count | 3k | |
| Fibre Type | Carbon Fibre | |
| Brand | Hyperdrivecarbon | |
| Ends | 5 | /cm |
| Picks | 5 | cm |
| Fibre Orientation | 0, 45 |
Fibre Properties
| UV Resistance | Fully UV Stable | |
|---|---|---|
| Density | 1.79 | g/cm³ |
| Filament Diameter | 7 | µm |
| Tensile Strength | 4120 | MPa |
| Tensile Modulus | 234 | GPa |
| Elongation at Break | 1.8 | % |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
General Properties
| Gross Weight | 0.24 | kg |
|---|
Carbon fiber cloth with a honeycomb weave is a specialized form of composite material known for its unique structural properties and applications. In this weave pattern, carbon fibers are arranged in a honeycomb or hexagonal structure, providing exceptional strength and stiffness while maintaining a lightweight construction. The honeycomb pattern enhances the material's load-bearing capabilities and impact resistance, making it a preferred choice in aerospace, automotive, and sporting equipment industries. This weave not only offers structural versatility but also contributes to improved thermal and mechanical characteristics, as observed in studies on woven structures with honeycomb patterns
When purchasing multiple metres the fabric will be supplied in one continuous length on a roll.
