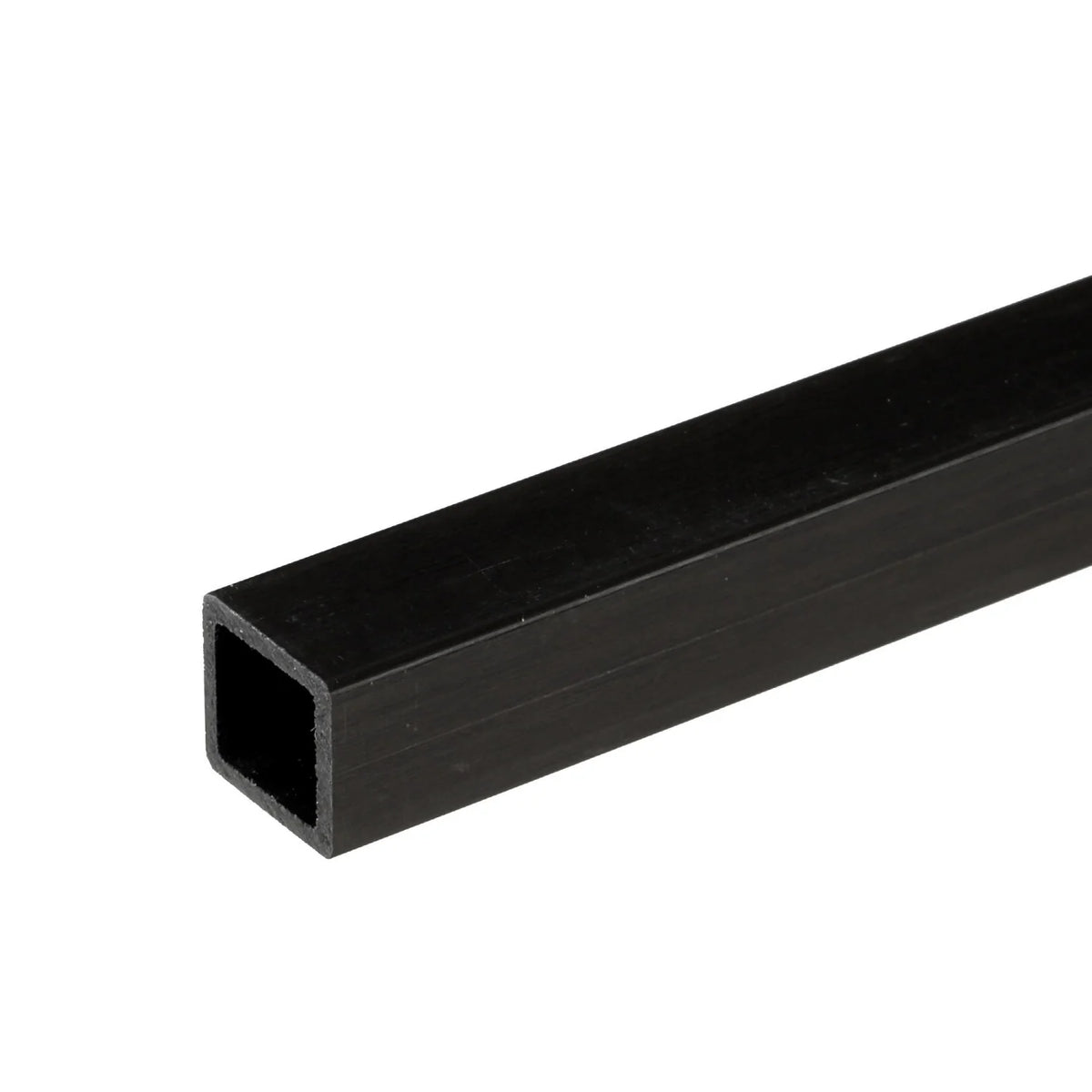

Carbon fibre Pultruded Square Box Tube 6mm ( 4mm )
£23.99
Incl. VAT. Shipping calculated at checkout.
In stock, ready to dispatch
- Same-day UK dispatch
- Worldwide shipping
- WhatsApp & email support
Dispatch & delivery
UK orders placed on working days are dispatched the same day from our UK warehouse. We ship worldwide, and delivery options and costs are shown at checkout. Larger sheets and cores are packed flat and protected for transit.
Returns
Unused items in their original condition can be returned. Contact us first and we'll guide you through it. Items that have been cut to size or used can't be returned.
Need technical advice?
Not sure which size, thickness or material is right for your build? Message our team on WhatsApp or email and we'll help you spec it, whether it's a one-off RC part or a production run.
Datasheet
Specification & details
Dimensions, material data and mechanical properties for Carbon fibre Pultruded Square Box Tube 6mm ( 4mm ).
- Brand
- Hyperdrivecarbon
- Category
- Toys & Games:Radio Control & RC Toys:RC Model Vehicle Parts & Accs:Other RC Parts & Accs
- Length options
- 1000mm
Carbon fiber pultruded square tubes are composite structures manufactured using a pultrusion process, which is a continuous method of producing fiber-reinforced polymer composites. Pultrusion involves pulling carbon fiber strands through a resin bath and then passing them through a heated die to shape and cure the composite material into a solid structure. The resulting carbon fiber tubes have a square cross-sectional profile, offering excellent structural integrity. These tubes are favored in industries requiring high strength-to-weight ratios, as carbon fiber is known for its lightweight yet exceptionally strong properties, outperforming materials like aluminum and steel in various applications.
SPECIFICATION
Weight and Dimensions
| Wall Thickness | 1 | mm |
|---|---|---|
| ID Tolerance (mm) | 0.25 | mm |
| OD Tolerance (mm) | 0.25 | mm |
| Length | 1000 | mm |
| Width | 6 | mm |
| Height | 6 | mm |
Product Data
| Colour | Black | |
|---|---|---|
| Construction | Pultrusion | |
| Appearance | UD (Matt) | |
| Resin Matrix | Epoxy |
Fabric Specification
| Fibre Orientation | Unidirectional |
|---|
Mechanical Properties
| Tensile Strength (Lengthways) | 400 - 500 | MPa |
|---|---|---|
| Tensile Modulus (lengthways) | 28-40 | GPa |
| Tg Onset (DMA) | 80 | °C |
General Properties
| Gross Weight | 0.0278 | kg |
|---|
Another benefit of carbon fiber pultruded square tubes is their corrosion resistance. Unlike metals, carbon fiber is not susceptible to rust or corrosion from environmental factors such as moisture, chemicals, or UV exposure. This makes these tubes particularly valuable in harsh environments, such as marine applications or in chemically aggressive industrial settings. Furthermore, carbon fiber composites do not conduct electricity, which can be beneficial in scenarios where electromagnetic interference or electrical insulation is a concern, such as in telecommunications or electrical infrastructure.
Carbon fiber pultruded square tubes are also customizable in terms of their resin matrix and fiber orientation, allowing engineers to tailor the properties of the tubes to specific needs. For instance, the resin used can be modified to enhance impact resistance, heat resistance, or flame retardancy. Meanwhile, the orientation of the carbon fibers can be adjusted to optimize the mechanical properties in different directions, whether the application requires more strength along the length of the tube or more resistance to torsional stresses. This flexibility, combined with the inherent advantages of carbon fiber, makes pultruded square tubes an excellent choice for a wide range of high-performance applications.
