Carbon Fibre Spread Tow 200g 20 x 20mm Squares Plain Weave 1000mm Width
£37.99
Incl. VAT. Shipping calculated at checkout.
In stock, ready to dispatch
- Same-day UK dispatch
- Worldwide shipping
- WhatsApp & email support
Dispatch & delivery
UK orders placed on working days are dispatched the same day from our UK warehouse. We ship worldwide, and delivery options and costs are shown at checkout. Larger sheets and cores are packed flat and protected for transit.
Returns
Unused items in their original condition can be returned. Contact us first and we'll guide you through it. Items that have been cut to size or used can't be returned.
Need technical advice?
Not sure which size, thickness or material is right for your build? Message our team on WhatsApp or email and we'll help you spec it, whether it's a one-off RC part or a production run.
Datasheet
Specification & details
Dimensions, material data and mechanical properties for Carbon Fibre Spread Tow 200g 20 x 20mm Squares Plain Weave 1000mm Width.
- Brand
- HyperDriveCarbon
- Category
- Crafts:Fabric
- Length options
- 1 metre, 2 metre, 3 metre, 5 metre, 10 metre, 25 metre, 50 metre, 100 metre
SPECIFICATION
Fabric Specification
| Colour | Black | |
|---|---|---|
| Fibre Orientation | 0, 90 | |
| Format | Woven Fabric | |
| Fibre Type | Carbon Fibre | |
| Filament Count | 3k | |
| Weave | 1 x 1 Plain | |
| Fibre Specifics | Toray T700 12k | |
| Ends | 0.55 | /cm |
| Picks | 0.56 | cm |
Weight and Dimensions
| Width | 1000 | mm |
|---|---|---|
| Thickness | 0.21 | mm |
| Consolidated Thickness | 0.21 | mm |
| Areal Weight | 200 | g/m² |
Fibre Properties
| Elongation at Break | 2.1 | % |
|---|---|---|
| Filament Diameter | 7 | µm |
| Tensile Strength | 4900 | MPa |
| Tensile Modulus | 230 | GPa |
General Properties
| Gross Weight | 0.32 | kg |
|---|---|---|
| Brand | TORAY |

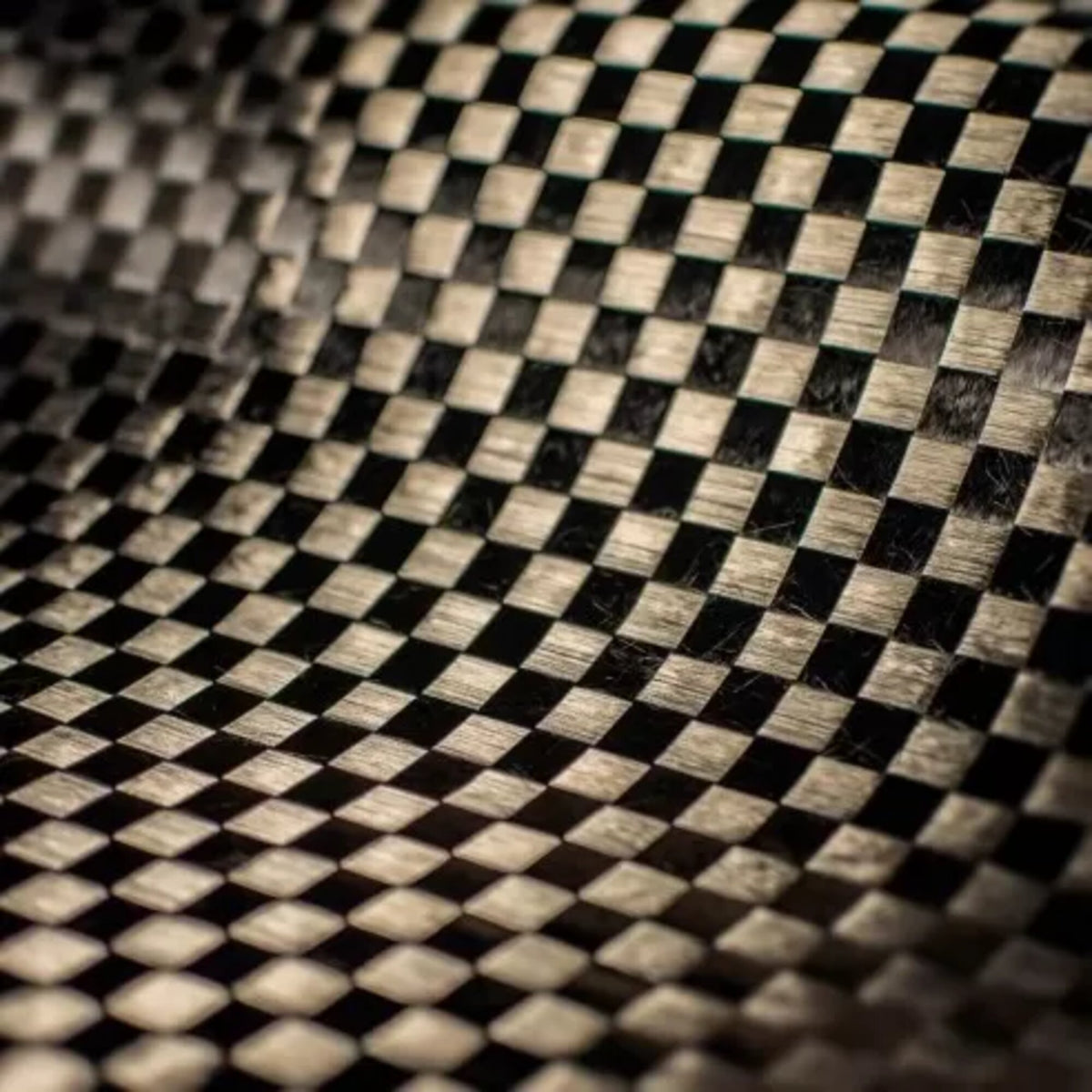

'Spread tow' is a new development in carbon fibre reinforcement whereby a sophisticated production process spreads out each tow (bundle) of carbon fibres making them significantly flatter and wider than they would be in a conventional woven fabric. Spreading the tow in this way creates ultra-flat strips of unsupported unidirectional carbon fibre which is then carefully woven to create a biaxial carbon fabric with an unprecedented flatness and a unique appearance.
Our 8mm Plain Weave spread tow fabric is woven in the conventional 'plain weave' pattern (over 1, under 1) but features weft and warp 8mm wide which means its plain weave pattern is nearly 4 times larger than a conventional plain weave carbon fabric.

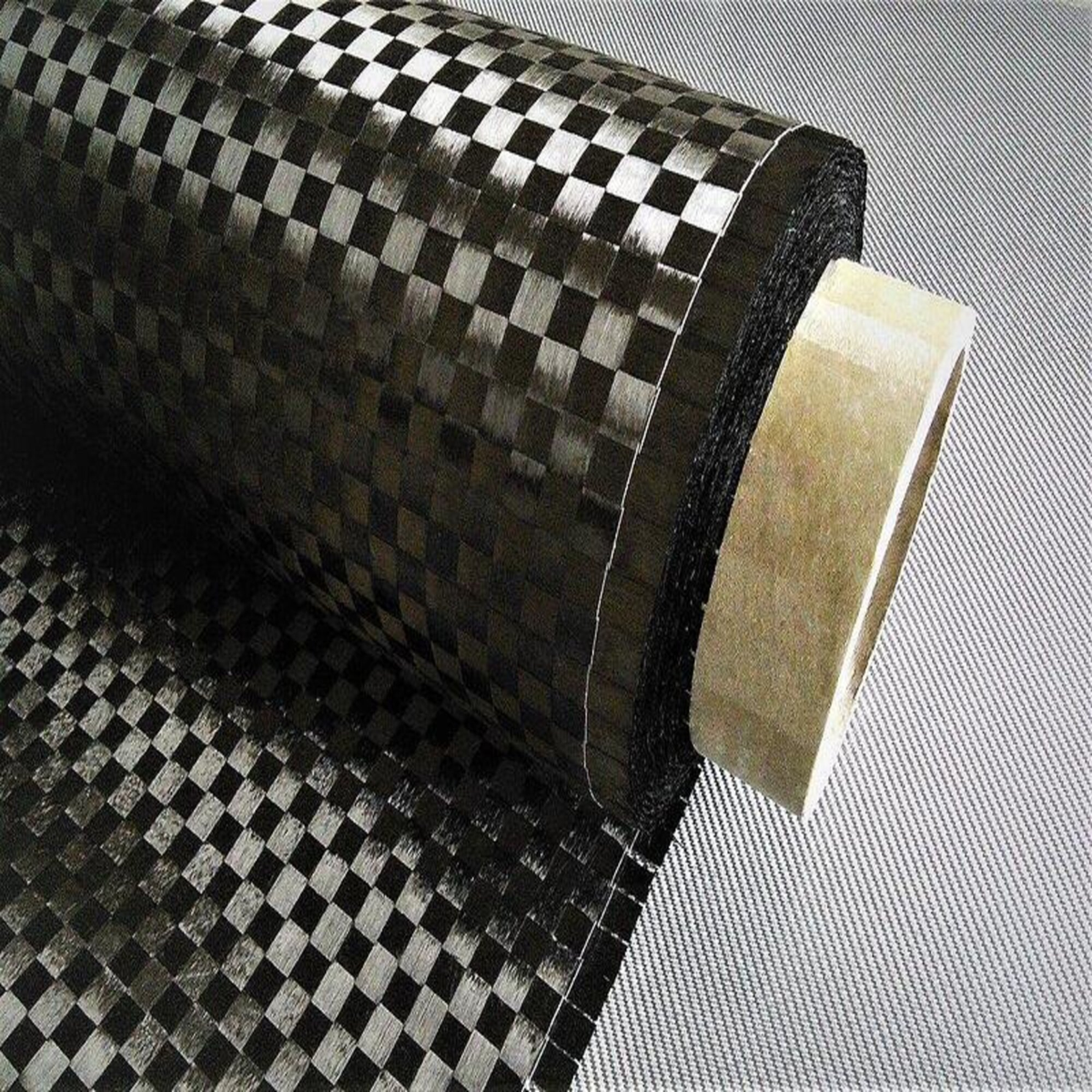

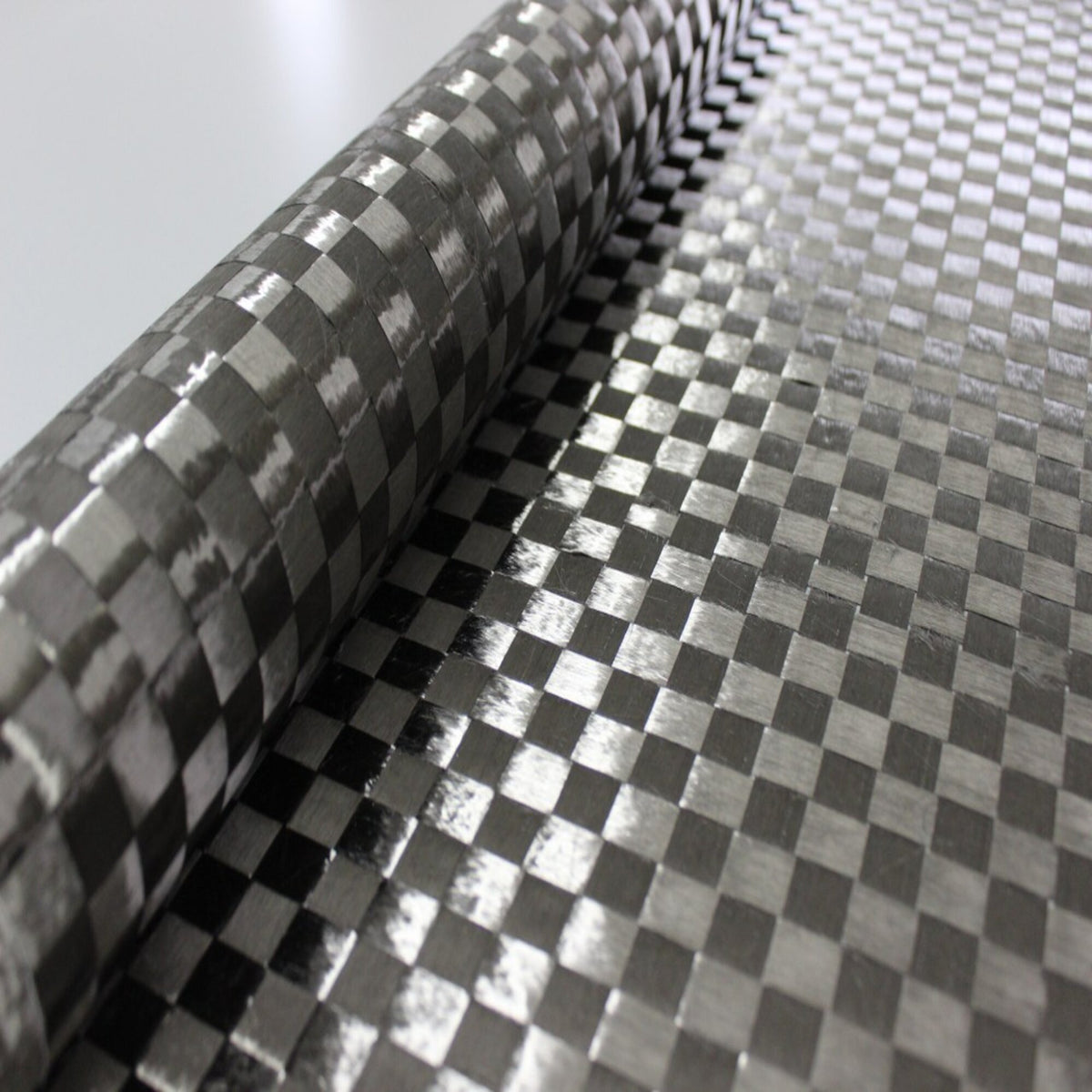

Please purchase the number of linear metres you require. When purchasing multiple metres the fabric will be supplied in one continuous length on a roll.
