Crafts:Fabric

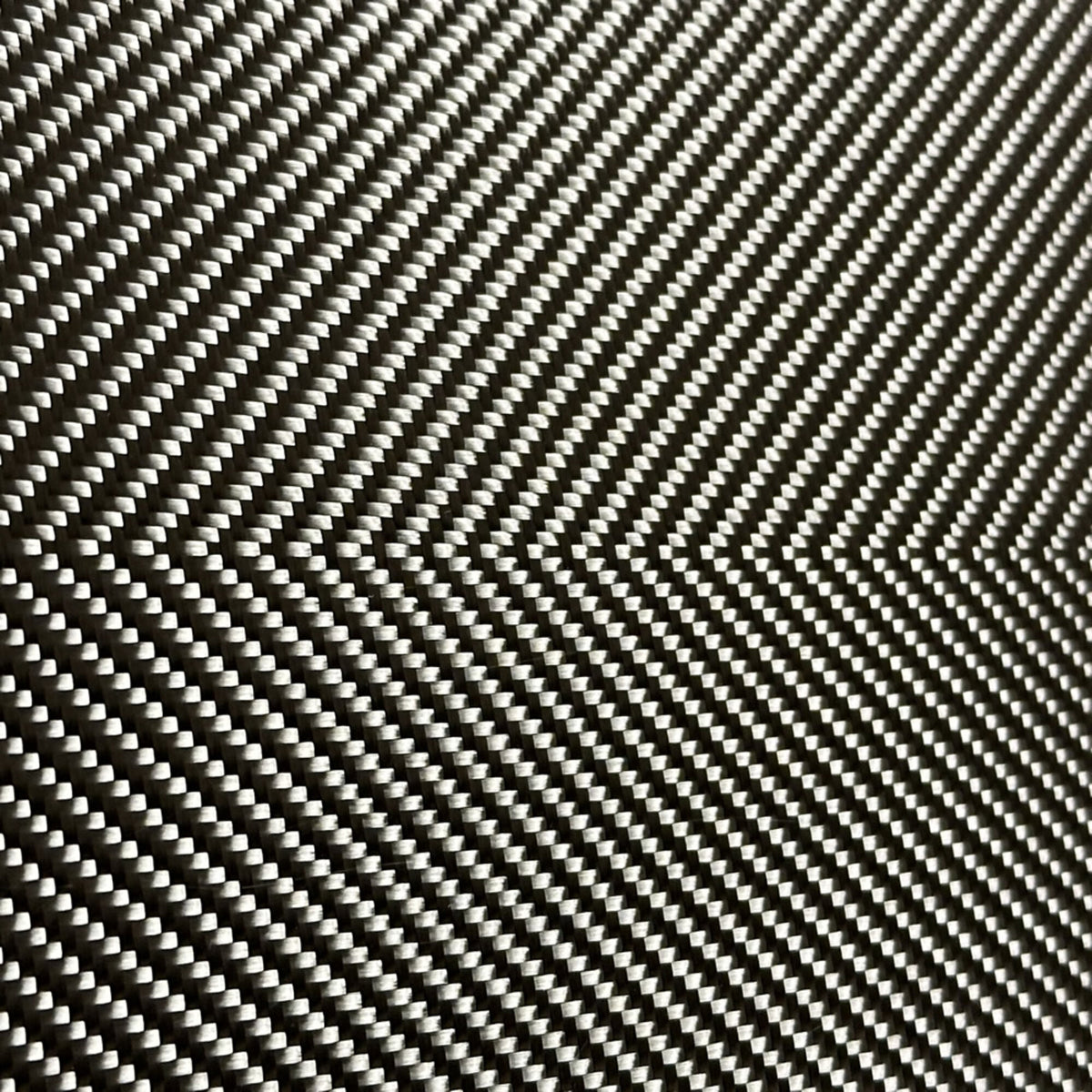

Carbon Fibre V-Weave Twill Fabric Cloth 2/2 210g 1500mm Width
£52.00
Incl. VAT. Shipping calculated at checkout.
In stock, ready to dispatch
- Same-day UK dispatch
- Worldwide shipping
- WhatsApp & email support
Dispatch & delivery
UK orders placed on working days are dispatched the same day from our UK warehouse. We ship worldwide, and delivery options and costs are shown at checkout. Larger sheets and cores are packed flat and protected for transit.
Returns
Unused items in their original condition can be returned. Contact us first and we'll guide you through it. Items that have been cut to size or used can't be returned.
Need technical advice?
Not sure which size, thickness or material is right for your build? Message our team on WhatsApp or email and we'll help you spec it, whether it's a one-off RC part or a production run.
Datasheet
Specification & details
Dimensions, material data and mechanical properties for Carbon Fibre V-Weave Twill Fabric Cloth 2/2 210g 1500mm Width.
- Brand
- HyperDriveCarbon
- Category
- Crafts:Fabric
| Colour | Black | |
|---|---|---|
| Fibre Orientation | 0, 90 | |
| Weave | 2 x 2 Twill | |
| Format | Woven Fabric | |
| Filament Count | 3k | |
| Fibre Type | Carbon Fibre | |
| Fibre Specifics | Pyrofil TR30S 3k | |
| Brand | Mitsubishi | |
| Ends | 5.1 | /cm |
| Picks | 5.4 | cm |
Weight and Dimensions
| Areal Weight | 210 | g/m² |
|---|---|---|
| Width | 1500 | mm |
| Thickness | 0.33 | mm |
| Consolidated Thickness | 0.33 | mm |
Fibre Properties
| UV Resistance | Fully UV Stable | |
|---|---|---|
| Filament Diameter | 7 | µm |
| Tensile Strength | 4120 | MPa |
| Tensile Modulus | 234 | GPa |
| Elongation at Break | 1.8 | % |
| Density | 1.79 | g/cm³ |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
General Properties
| Gross Weight | 0.315 | kg |
|---|
This special carbon fibre cloth fabric is woven so that that herringbone pattern of the 2/2 twill weave meets in a V shape down the middle of the cloth, perfect for decorative applications, like a car bonnet/hood.
This fabric has been developed to fix the problem of creating a cosmetic "V-Weave" pattern on cosmetic carbon panels. This feature is seen only on the top supercars and Hypercars.
This specialist fabric is based on the same top quality carbon fibre fabric used in our manufacturing facility every day. This fabric uses the top quality Mitsubishi-Rayon Pyrofil TR30S 3K fibres in its manufacture. The fabric is woven into a 2x2 twill pattern with the V-Weave centre line is positioned exactly in the middle of the fabric. The 1.5m wide roll width has been chosen so it suits the widest range of applications and should suit even the widest of car bonnets and body panels you are likely to encounter.
When purchasing multiple metres the fabric will be supplied in one continuous length on a roll.
Resin Infusion
V-Weave is a great choice for resin infusion projects where you want a high quality cosmetic finish.
Skinning/Wrapping Parts in Carbon Fibre
If you are skinning/wrapping carbon fibre around the outside of a part (for cosmetic purposes) then V-Weave can be used for its amazing cosmetic effect to make the skinned part truly look like a high grade professionally made part.
