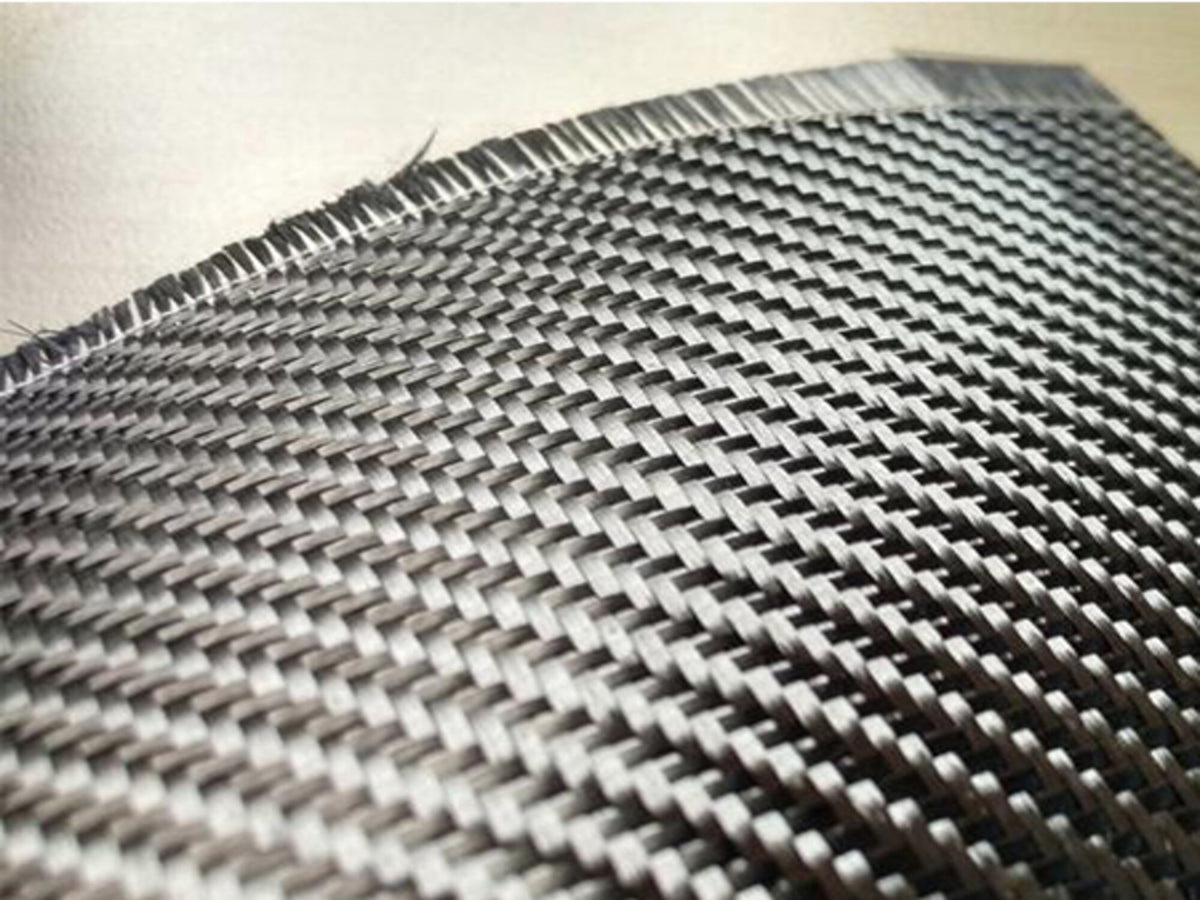

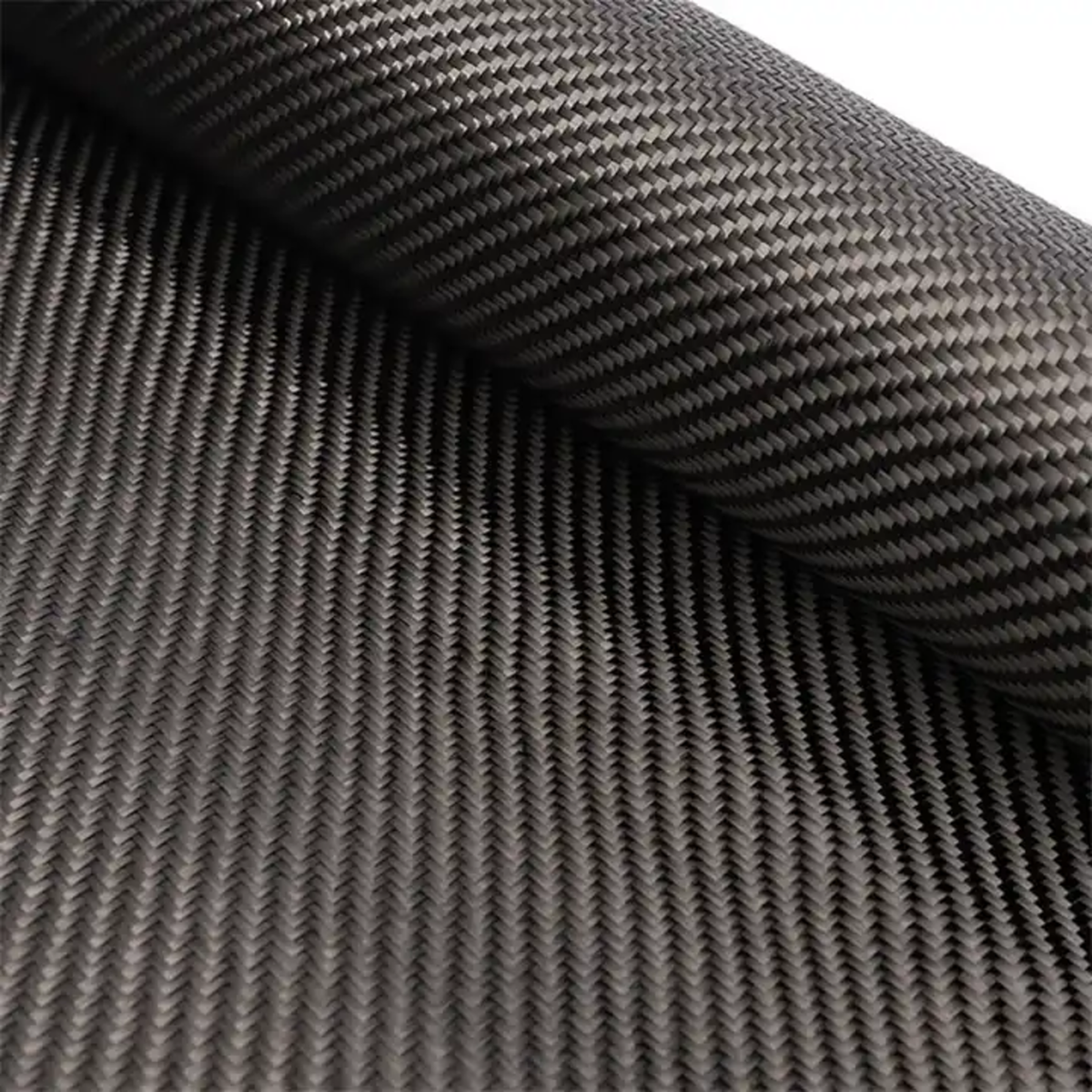

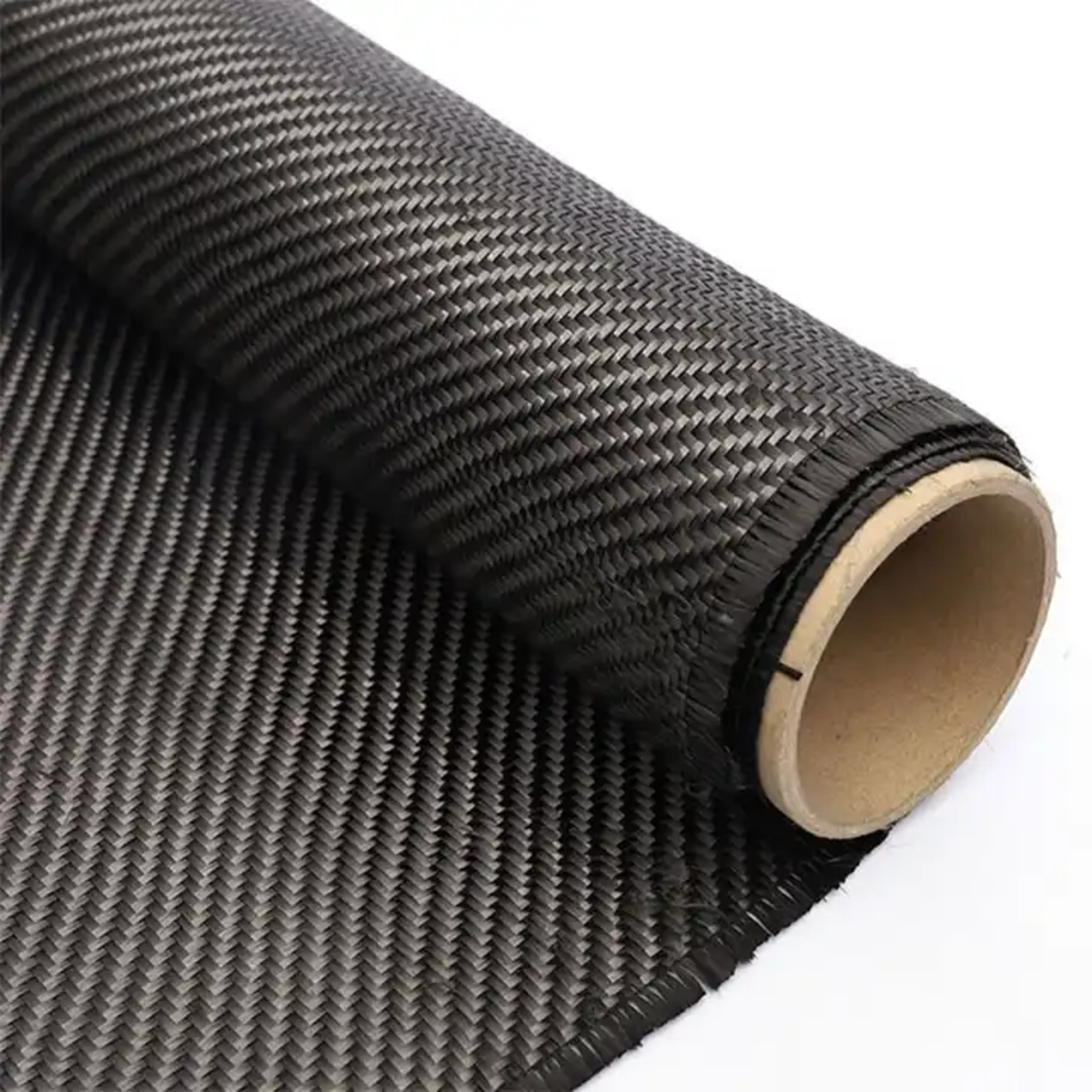

Carbon Fibre Cloth Fabric 240gsm 2/2 3k Twill 1000mm Width
Couldn't load pickup availability
https://www.ebay.co.uk/itm/314715573867
SPECIFICATION
Weight and Dimensions
Width | 1000 | mm |
---|---|---|
Thickness | 0.28 | mm |
Consolidated Thickness | 0.25 | mm |
Areal Weight | 240 | g/m² |
Fabric Specification
Colour | Black | |
---|---|---|
Weave | 2 /2 Twill | |
Format | Woven Fabric | |
Filament Count | 3k | |
Fibre Type | Carbon Fibre | |
Ends | 5 | /cm |
Picks | 5 | cm |
Fibre Orientation | 0, 90 |
Fibre Properties
UV Resistance | Fully UV Stable | |
---|---|---|
Density | 1.79 | g/cm³ |
Filament Diameter | 7 | µm |
Tensile Strength | 4120 | MPa |
Tensile Modulus | 234 | GPa |
Elongation at Break | 1.8 | % |
Suitable Uses
Suitable Uses | Hand Laminating / Repair | Yes |
---|---|---|
Suitable Uses | Resin Infusion | Yes |
Suitable Uses | Tooling | Yes |
Suitable Uses | Vacuum Bagging | Yes |
Compatible With
Compatible With | Epoxy | Yes |
---|---|---|
Compatible With | Polyester | Yes |
Compatible With | Vinylester | Yes |
General Properties
Gross Weight | 0.25 | kg |
---|
240g Carbon Fibre Twill Weave Cloth is a premium-grade fabric renowned for its versatility and classic carbon fiber appearance. The 2x2 twill weave pattern provides a distinctive aesthetic while maintaining structural integrity. Weighing 24dsddsamnjh0 grams per square meter, this cloth strikes a balance between lightweight construction and robust performance. Widely used in various applications, including aerospace, automotive, and marine industries, it offers excellent strength-to-weight ratio and conforms well to complex shapes. The cloth is available in different sizes and widths, making it suitable for diverse manufacturing processes such as wet lay-up, vacuum bagging, and resin infusion. Its popularity stems from being an all-rounder, combining aesthetic appeal with exceptional mechanical properties, making it a preferred choice for those seeking high-quality carbon fiber reinforcement
